| Brand Name : | Forest |
| Model Number : | C8000 |
| Price : | $15900.00 - $20900.00 / Set |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 30 Sets per Month |
| Delivery Time : | 1 week |

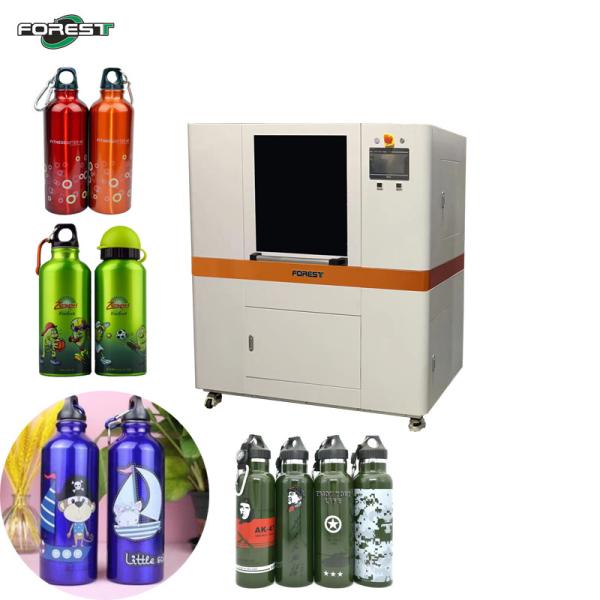

Product: Cylinder Bottle UV Printer
Description:
Printer Parameters:
Model | C8000 |
Print head | Epson i1600 / Ricoh G5i |
Head Qty. | 2-4 pcs |
Color model | CMYK+White+Varnish |
Print Diameter | φ40-180mm |
Print Length | 20-300mm |
Cone Angle | 10° MAX |
Media type | Cylinder and tumbler objects |
Print Solution | 2400DPI MAX |
Printing Speed | 4 pcs/minutes (CMYK model) |
Operation system | Windows 7/ Windows 10 |
Apply | Cylinder bottle,Cans,Metal,PE,PP,PU,Carton,Tumbler objects. |
Color control | ICC curve and density adjustment function |
Image format | TIFF,JPEG,PDF,POSTSCRIPT3 |
Power supply | AC 110V / 220V,50/60HZ 1.5 KW |
Revolutionary innovation for screen printing on cylindrical and conical objects,
including glass bottles, aluminum cans, plastic cups, cylinders, and cones.
The optimal solution for on-demand, customized, and package
printing needs.
No plate creation required, streamlined process, cost-effective
compared to screen printing,
and the ability to print in any color.
Applicable for quantities as low as a single piece.
Average of daily output: 3pcs/min X 60 mins X 8 hours=1440pcs
Average of one bottle profit $0.7usd X1440 pcs = $1,008usd / Day.
Advantage :
1.Widely working diameter: 40-180mm.
2.Widely working length: 20-300mm.
3.High speed printing: Average speed is 30 seconds one bottle.
4. Quiet working environment, my printer do not need to use the
noisy air compressor.
5. Lower ink cost, average is 0.02usd for ink of one bottle
printing.
6. 360 degree seamless helix printing system, high quality and
flawless printing.
7. Unique automatic head clean and automatic head maintenance
system after machine OFF. It is friendly to user that we do not
need to clean head by manual when the long time holiday.
8.White+CMYK+Varnish Multi-color printing with less ink alarm.
9.Bottle scanner for detect bottle shape and size automatic,more intelligent and easy to print on curvature.
10. Infrared sensor for printing position,print start from the place we marked.
11. Top configuration double negative system for continuous ink supply.
12. Bottle position detect make sure the bottle never touch the print head,protect print head well.
Package&Shipping:
To enhance the security of your merchandise,
we offer expert, convenient, and efficient packaging services.
