Product: Cylinder UV Printer Bottle Printing Machine
Description:
Printer Parameters:
Model | C8000 |
Print head | Epson i1600 / Ricoh G5i |
Head Qty. | 2-4 pcs |
Color model | CMYK+White+Varnish |
Print Diameter | φ40-180mm |
Print Length | 20-300mm |
Cone Angle | 10° MAX |
Media type | Cylinder and tumbler objects |
Print Solution | 2400DPI MAX |
Printing Speed | 4 pcs/minutes (CMYK model) |
RIP software | Maintop / Photoprint |
Operation Language | English / Chinese |
Operation system | Windows 7/ Windows 10 |
Apply | Cylinder bottle,Cans,Metal,PE,PP,PU,Carton,Tumbler objects. |
Color control | ICC curve and density adjustment function |
Image format | TIFF,JPEG,PDF,POSTSCRIPT3 |
Power supply | AC 110V / 220V,50/60HZ 1.5 KW |
Operation Environment | Temperature:20℃~28℃ Humidity:40% RH~60% RH |
Weight | 495kg |

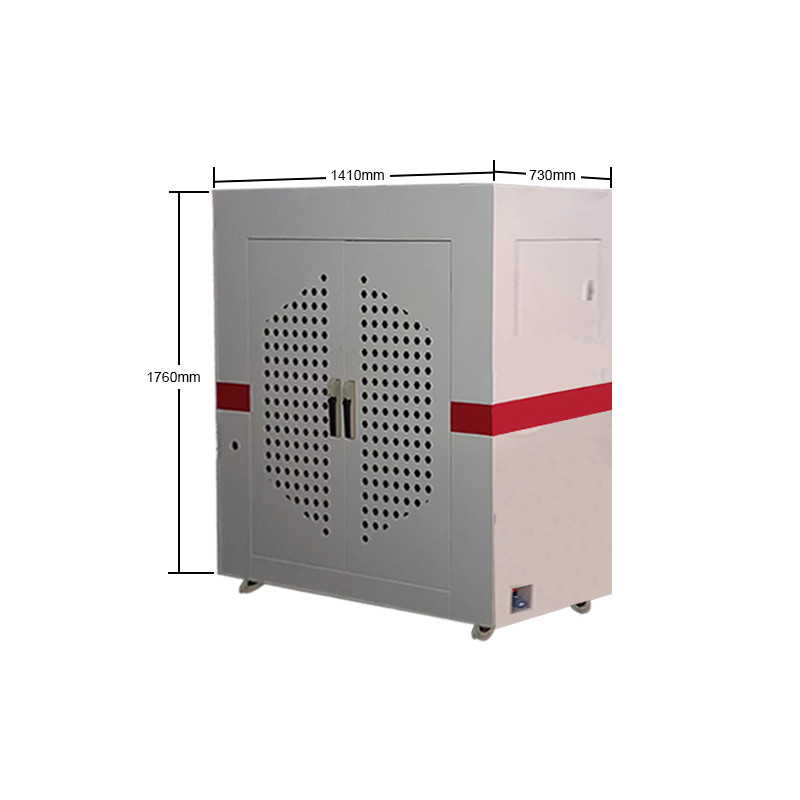

Dimension | 1410*730*1755MM |
Experience a new era of innovation in cylinder and cone screen
printing. Our cutting-edge solution is tailored for glass bottles,
aluminum cans, plastic cups, cylinders, and conical objects, making
it the ideal choice for on-demand, custom, and package printing
needs.
Experience simplicity without the need for plates in our cost-effective process. Offering a more economical alternative to screen printing, this method allows the printing of any color, even for single-piece quantities.
Achieving an average daily output of 1440 pieces (3 pieces per minute for 8 hours), our production efficiency is remarkable. At a profit of $0.7 USD per bottle, this translates to a daily revenue of $1,008 USD.
Advantage :
1. Broad operating diameter range: 40-180mm.
2. Extensive working length: 20-300mm.
3. Rapid printing capabilities: Achieving an average speed of 30 seconds per bottle.
4. Distinctive automatic head cleaning and maintenance system activated after machine shutdown.
User-friendly as it eliminates the need for manual head cleaning during extended breaks.
5. Multi-color printing in White+CMYK+Varnish with a low ink alarm for efficient ink management.
6.Server motor direct to bottle rotary printing, reduce the physical error which is good for high accuracy printing quality.
7.Bottle scanner for detect bottle shape and size automatic,more intelligent and easy to print on curvature.
8. Infrared sensor for printing position,print start from the place we marked.
9. Top configuration double negative system for continuous ink supply.
10. All operation in one LCD screen,Intelligent machine design and friendly operation.
